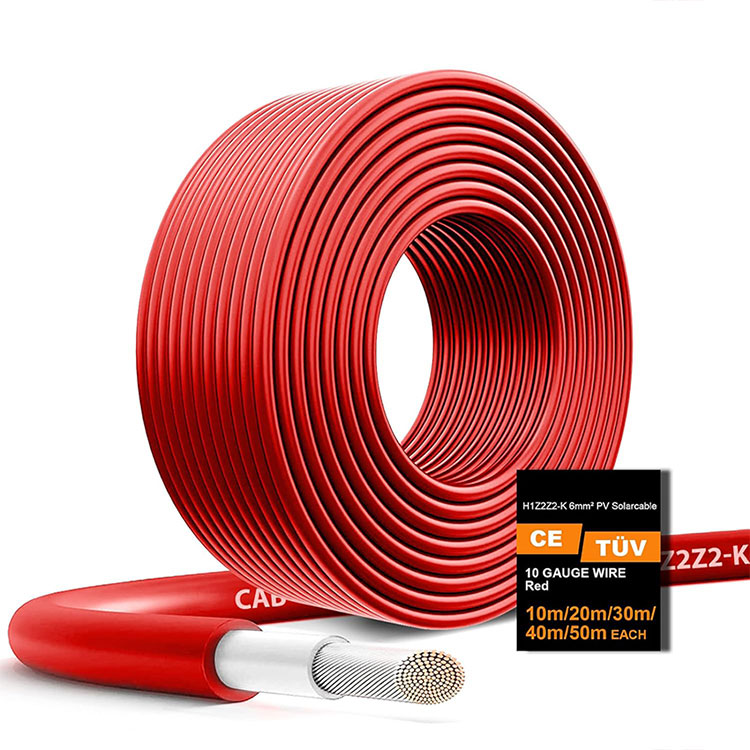

Solar Panel Extension Wire H1Z2Z2-K Tinned Copper Outdoor Solar Wiring Cables

You can rest assured to buy customized Solar Panel Extension Wire H1Z2Z2-K Tinned Copper Outdoor Solar Wiring Cables from us. 10 AWG Wire: Package includes a 20M/ 65FT 10AWG solar wire, enough length for you to DIY the connection in your solar system. Generally, the 10AWG solar cable is the maximum diameter for solar panel cables, thick and durable. Using this diameter solar extension cable can provide your equipment with stable current and faster transmission speed, effectively reducing power loss.

Tinned Copper Wire: The solar panel cable is made of tin plated conductive copper material, 84 strands 0.295 mm tinned copper wire are inside each 10 gauge wire, has better conductivity, thermal conductivity, and corrosion resistance than other common materials, extra-thick insulation can withstand extreme heat and cold -40℃-90℃. Designed for Extreme Weather, It can be buried directly in the ground.

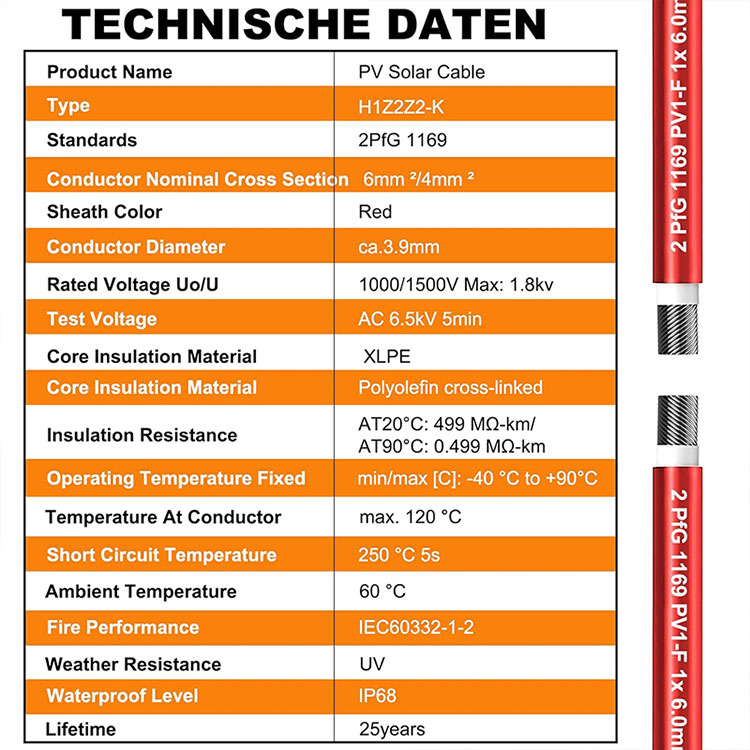

Professional Photovoltaic Solar Wire: This solar panel extension cable meets TUV standards for photovoltaic solar applications and can be used in a variety of environments to ensure circuit safety. Cross-sectional area: 6mm2, temperature range: environment -40°C-90°C, test voltage: 6500V, rated voltage: DC1500V, conductor resistance: (20°C) ≤≤5.09Ω/KM, weather resistance: UV, rated current: 57A.

Weather Resistant Solar Panel Wire: The IP68 level of waterproofing allows the solar panel wire to work outdoors for a long time (over 25 years), The solar wire outer layer consists of XPLE/XPLO materials, which can protect the wires from wear and chemical corrosion. built-in insulation protection layer to prevent the risk of electric shock, flame retardant and prevent fire. It ensures reliable and efficient power transmission even in harsh environments such as rain, snow and wind.

10 AWG Solar Wire: The 10 gauge copper wire allow for more space to be extended between the solar panels and the charge controllers, easy to solder and cut, which is widely used for wiring various low-voltage electronic devices, including solar panels, DC circuits, ships, ships, automobiles, RVs, LEDs, and inverter wiring etc.

SPECIFICATION:

Brand: Paidu

Color: Red

Material: Tinned Copper

Number of Cable Strands: Multi Stand

Gauge: 10

Solar Cable Length: 65FT Red

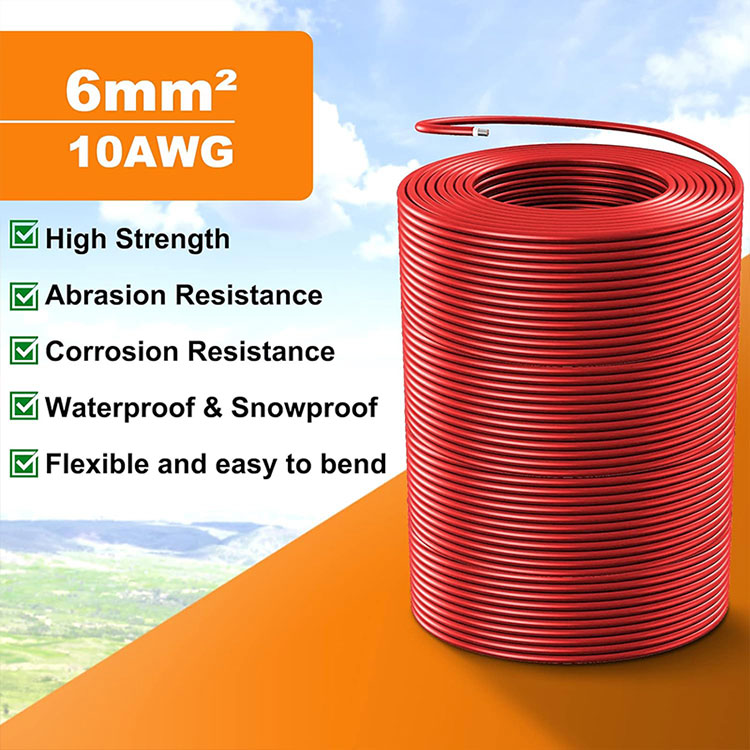

Wire Gauge: 10AWG/6mm2

Is it Waterproof: IP68 Waterproof

Life Time: 25 Years

Item Model Number: Cable Solaire 6mm2

Item Weight: 3.53 pounds

Product Dimensions:  8.27x8.27x1.97 inches
